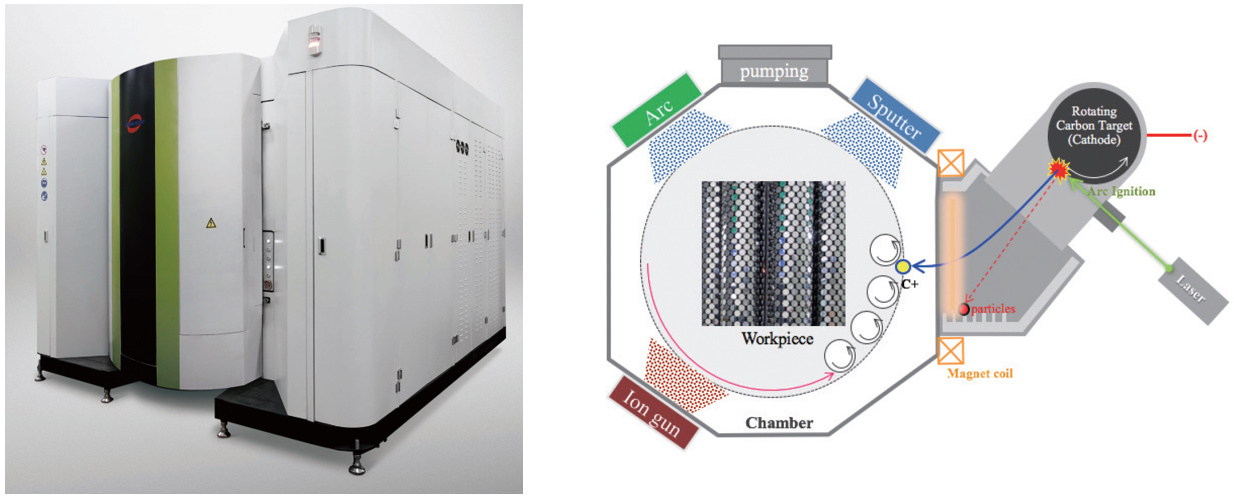

Filtered Laser Arc

• LAMSIS is the filtered laser arc system for mass production of hydrogen free DLC(ta-C, a-C) coatings

• Better surface roughness can be achieved with a bent duct and electromagnetic filtering

• Suitable for mass production with scale-up to higher coating height and faster deposition rate

设备参数

• Effective zone : Φ800 x  max. H600~800mm

• Thickness : 1~8 um

• Hardness : 15~60GPa depending on applications

• Deposition rate : 0.3um/hH600 in double rotation with one laser

应用

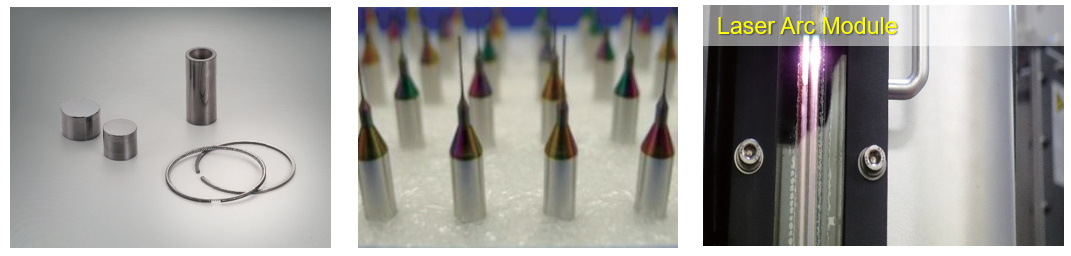

  汽车配件，发动机部品 (活塞环, 活塞销, 挺杆), 有色金属，石墨，PCB用刀具

特性

 LAMSIS是无氢DLC涂层,, 有大规模生产能力的过滤激光电弧方式设备

   - 涂层设备有效尺寸大, 沉积速度快,适合大规模生产

   - 通过电磁过滤系统表面粗糙度更好

   - 通过脉冲激光点火系统可控电弧发生

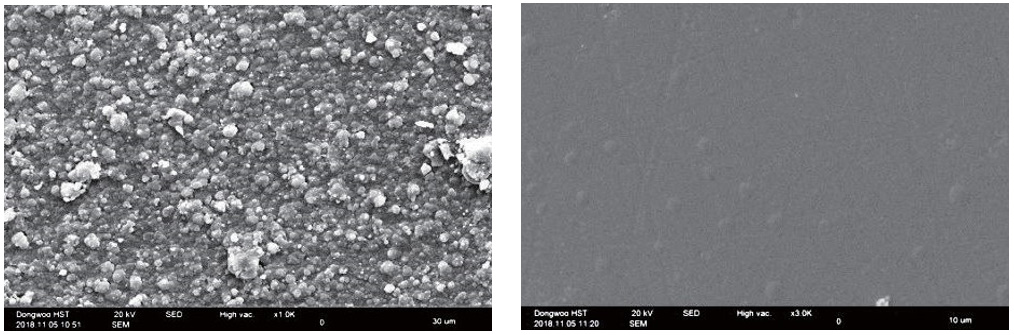

通过过滤系统提高无氢DLC涂层表面粗糙度

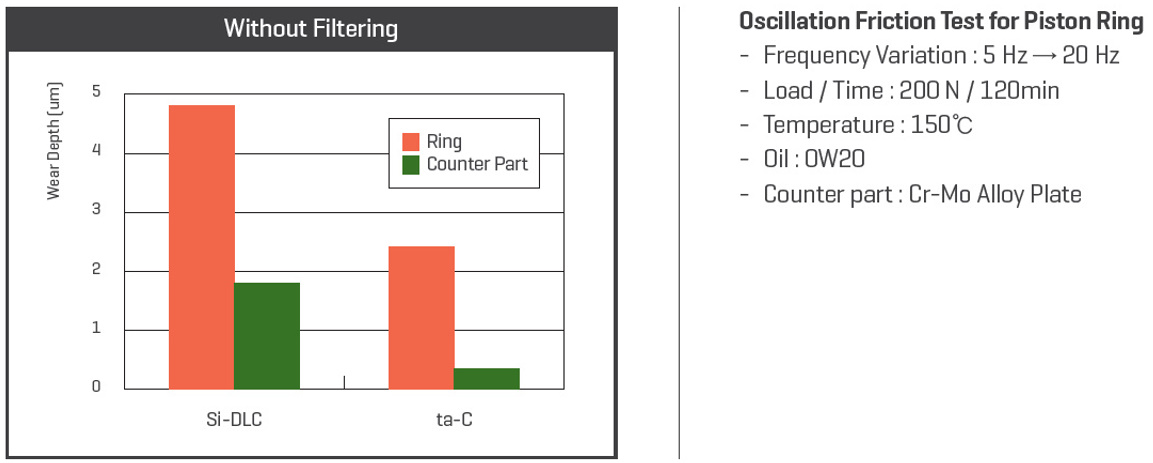

性能
